Azure Network Engineering Demo

Implemented on April 14, 2025

Project Overview

This project demonstrates the implementation of a hub-spoke network topology in Azure, showcasing fundamental network engineering principles, segmentation, and security best practices while maintaining cost efficiency. The design creates a foundation for enterprise-grade network architecture that can be expanded for production workloads.

Architecture Diagram

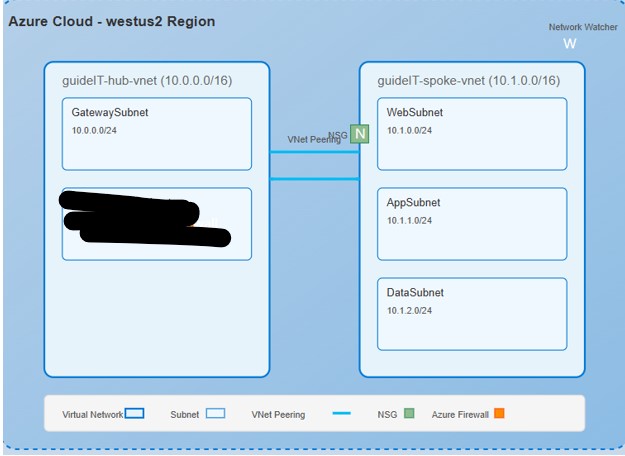

Hub-Spoke Network Architecture Diagram

Visual representation of the hub-spoke network architecture with security components and network segmentation

Technical Implementation

Core Infrastructure

Network Security

  • Web Tier NSG: guideIT-web-nsg
    • Allows HTTP (port 80) inbound
    • Allows HTTPS (port 443) inbound
  • App Tier NSG: guideIT-app-nsg
    • Allows traffic from Web Tier only
    • Restricts direct internet access

Connectivity

  • VNet Peering: Bi-directional connectivity
    • HubToSpoke peering configuration
    • SpokeToHub peering configuration
  • Virtual Machine: guideIT-web-vm
    • Located in WebSubnet
    • Demonstrates network connectivity

Implementation Process

The infrastructure was deployed using a combination of Azure CLI commands and Azure Portal configuration, demonstrating proficiency in both programmatic and GUI-based network configuration.

Key Commands Used

# Create resource group az group create --name guideIT-rg --location westus2 # Create hub VNet az network vnet create --resource-group guideIT-rg --name guideIT-hub-vnet --address-prefix 10.0.0.0/16 # Create spoke VNet az network vnet create --resource-group guideIT-rg --name guideIT-spoke-vnet --address-prefix 10.1.0.0/16 # Create subnets az network vnet subnet create --resource-group guideIT-rg --vnet-name guideIT-hub-vnet --name GatewaySubnet --address-prefix 10.0.0.0/24 az network vnet subnet create --resource-group guideIT-rg --vnet-name guideIT-hub-vnet --name AzureFirewallSubnet --address-prefix 10.0.1.0/24 # Create peering az network vnet peering create --resource-group guideIT-rg --name HubToSpoke --vnet-name guideIT-hub-vnet --remote-vnet guideIT-spoke-vnet --allow-vnet-access

Network Engineering Principles Demonstrated

1. Network Segmentation

  • Separation of network tiers (web, app, data)
  • Subnet isolation for different workload types
  • Clear address space planning with CIDR notation

2. Security Controls

  • NSGs implemented at subnet level
  • Rule-based traffic filtering
  • Defense-in-depth security approach

3. Hub-Spoke Design Pattern

  • Centralized management of shared services
  • Simplified network topology
  • Efficient connectivity between segments

4. Cost Optimization

  • Right-sized implementation
  • Strategic use of Azure networking features
  • Proper resource allocation

Future Enhancements

If this demonstration were expanded to a production environment, the following enhancements would be implemented:

  • Azure Firewall for centralized network security
  • Azure Bastion for secure VM access
  • ExpressRoute or VPN Gateway for hybrid connectivity
  • Azure Private Link for secure PaaS service access
  • Network Watcher for advanced diagnostics
  • Traffic Analytics for network visibility

Key Learnings & Skills Demonstrated

Technical Skills

  • Azure Virtual Network design and implementation
  • Network Security Group configuration
  • VNet Peering setup and management
  • CLI and Portal-based Azure administration

Network Engineering Concepts

  • Network architecture planning
  • IP address space management
  • Security as a fundamental network element
  • Centralized vs. distributed network management
